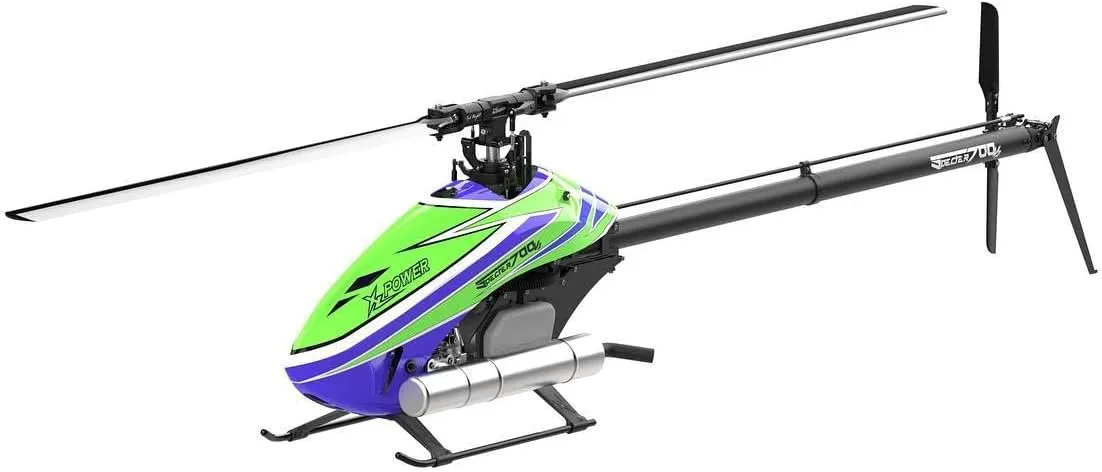

- XL Power's Specter Nitro brings innovation to glow engine powered helicopters improving simplicity and reliability. Using a proven 7075 aluminium rotor head and tail rotor from the Specter 700 V2 NME, Specter Nitro shares parts and the control feel of its electric counterpart
- Utilizing tapered joints, the clutch stack requires no extra building techniques or tricks to have superior alignment and a super smooth running drive train
- Two double row angular contact bearings in the single piece main shaft block connect the clutch bearing block assembly to the 15mm mainshaft aligning the main gear and pinion
- The clutch is captured by two high quality radial bearings, a torrington bearing inside the pinion and an angular contact bearing above the pinion to keep the clutch bell rigid.
- A total of four bearings for the clutch assembly combined with the tapered clutch, fan and motor shaft collet bring a level of concentricity, smothness and longevity never seen before in a model helicopter drive train
- Direct drive main gear directly driving the rotor head has been designed for producing peak power through extreme rigidity, transferring all the power of big block nitro engines. Heavy duty sprag one way system and a dual supported clutch system (top and bottom) tied to the main crutch of the helicopter prolongs bearing life and engine performance
Length without main blades : 1381mm Overall height: 363mm Width: 217mm Main gear: 136T Pinion gear: 17T Main gear ratio: 8 Front tail pulley: 100T Rear tail pulley: 21T Tail Ratio: 4.76 (5.0 optional) Frame weight: 4.2kg (without fuel) Main shaft diameter: 15mm Feathering shaft diameter: 10mm Tail boom diameter: 32mm Tail belt width: 8mm Main gear thickness: 10mm Battery compartment size: 125mm x 45mm x 20mm * Includes: 1 x kit 1 x clutch puller 1 x crankshaft tool * Needed to complete: Transmitter (7CH or more , helicopter system) Receiver (7CH or more) Flybarless gyro system 0.91 - 1.20 nitro helicopter engine Nitro exhaust pipe Digital Pitch Gauge (3) Full size cyclic servos (1) Full size throttle servos (1) Full size tail servos (1) Set of 685-720mm rotor blades (1) Set of 105-115mm tail rotor blades Nitro starting equipment Misc. building equipment
