- GY6 Engine, 150cc
- Short Case, Use 743 Belt, 4 Stroke, CVT auto clutch, electric start, build-in Reverse.
- Kindly check our specifications and pictures carefully for fitness.

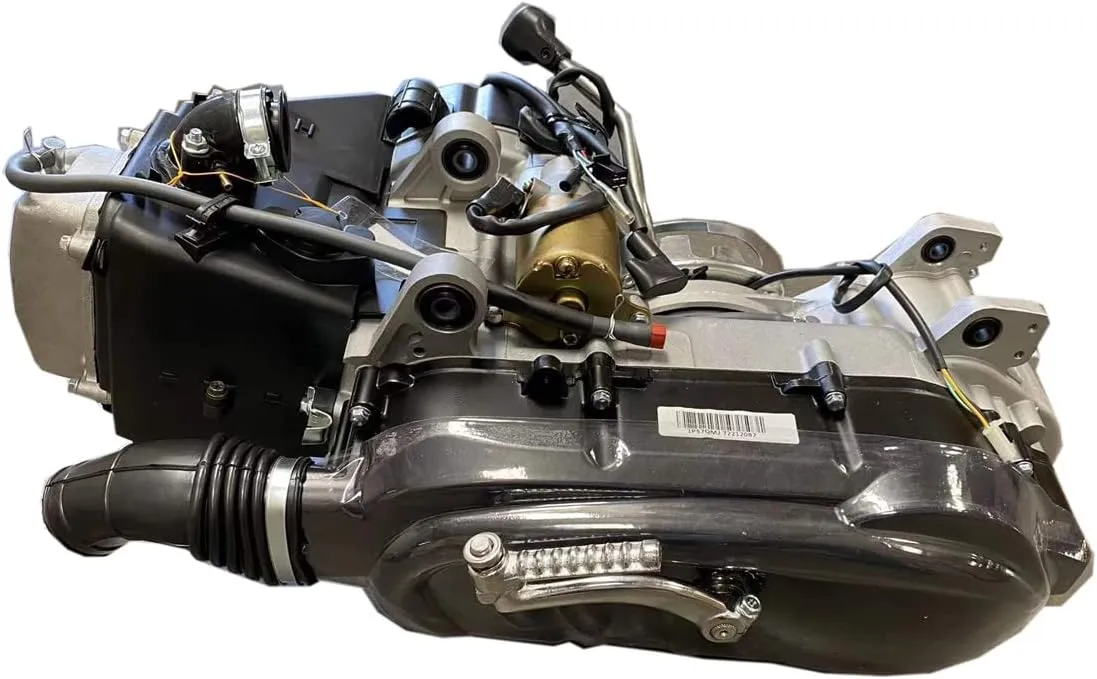

Short Case 150cc 4-stroke GY6 Engine Motor Auto, Build-in Reverse ATVs, Go Karts
Mounting Hole Spacing A: 11.5"
Mounting Hole Spacing B: 2.4" X 3.8"
Mounting Hole Spacing C: 4.9" X 6.5"
Engine Model: 308-999044
Ignition Method: CDI
Engine Type: Single Cylinder, 4-Stroke, 2-Valve
Lubrication: Pressure/splash
Cooling System: Air Cooled
Fuel Supply: Carburetor Atomization
Horsepower: 8.72HP/7500Rpm (6.5KW/7500Rpm)
Starter: Electric/Kick starter
Max.Torque: 9.0N.m/5500rpm
Transmission: CVT with Builed-in Reverse
Min.Stable Idle Speed: 1450-1750r/min
Clutch: Shoe-type Automatic Centrifugal Dry Clutch
Min.Fuel Consumption: 9.31oz/HP.h (354g/Kw.h)
Cylinder Diameter: 2.26" (57.4mm)
Carburetor Model: PD24J
Piston Stroke: 2.28" (57.8mm)
Carburetor Type: Horizontal Vacuum Carburetor
Bore & Stroke: 2.26" x 2.28" (57.4mm x 57.8mm)
Spark Plug Model: A7TC
Cylinder Working Volume: 0.03 Gallon (149.6ml)
Fuel No.:>= 87#
Compression Ratio: 10.5:1
Lubrication Model: SF15W/40-SE
Ignition Type: CFW
Lubrication Capacity: 0.26 Gallon (1200ml)
