- Turning the adjustment set screw CCW reduces the spring tension and makes the clutch engage sooner, thus "softening" the power delivery. This can make the car easier to drive on lower traction tracks.
- Turning the adjustment set screw CW increases the spring tension and makes the clutch engage later, making the power delivery more aggressive. This can be useful on higher traction tracks
- The FT 4-Shoe Adjustable Flywheel is made from hard anodized aluminum
- The FT Spring Cam is made from hardened steel
Team Associated FT 4-Shoe Adjustable Clutch System
Features :
Patent-pending design allows for spring tension adjustments without changing springs.
Make spring tension adjustments without removing engine, clutch, or any other components.
Adjustable flywheel and spring cam are compatible with all existing Team Associated 4-shoe clutch components including shoes, springs, collet, flywheel nut, and flywheel pins.
The FT 4-Shoe Adjustable Flywheel is made from hard anodized aluminum
The FT Spring Cam is made from hardened steel
Fits RC8B3 series and most 1:8 nitro buggies and truggies
To upgrade your existing Team Associated 4-Shoe clutch to the new adjustable model:
Use #81421 FT 4-Shoe Adjustable Flywheel and Spring Cam
Use existing springs, shoes, collet, nut, pins and clutch bell
Requires one M3x5 mm set screw, AE #89219
Requires red thread-locking compound
To upgrade your existing non-Team Associated clutch or to build the adjustable model with all new components:
Use #81420 FT 4-Shoe Adjustable Clutch System. All hardware is included.
Requires red thread-locking compound

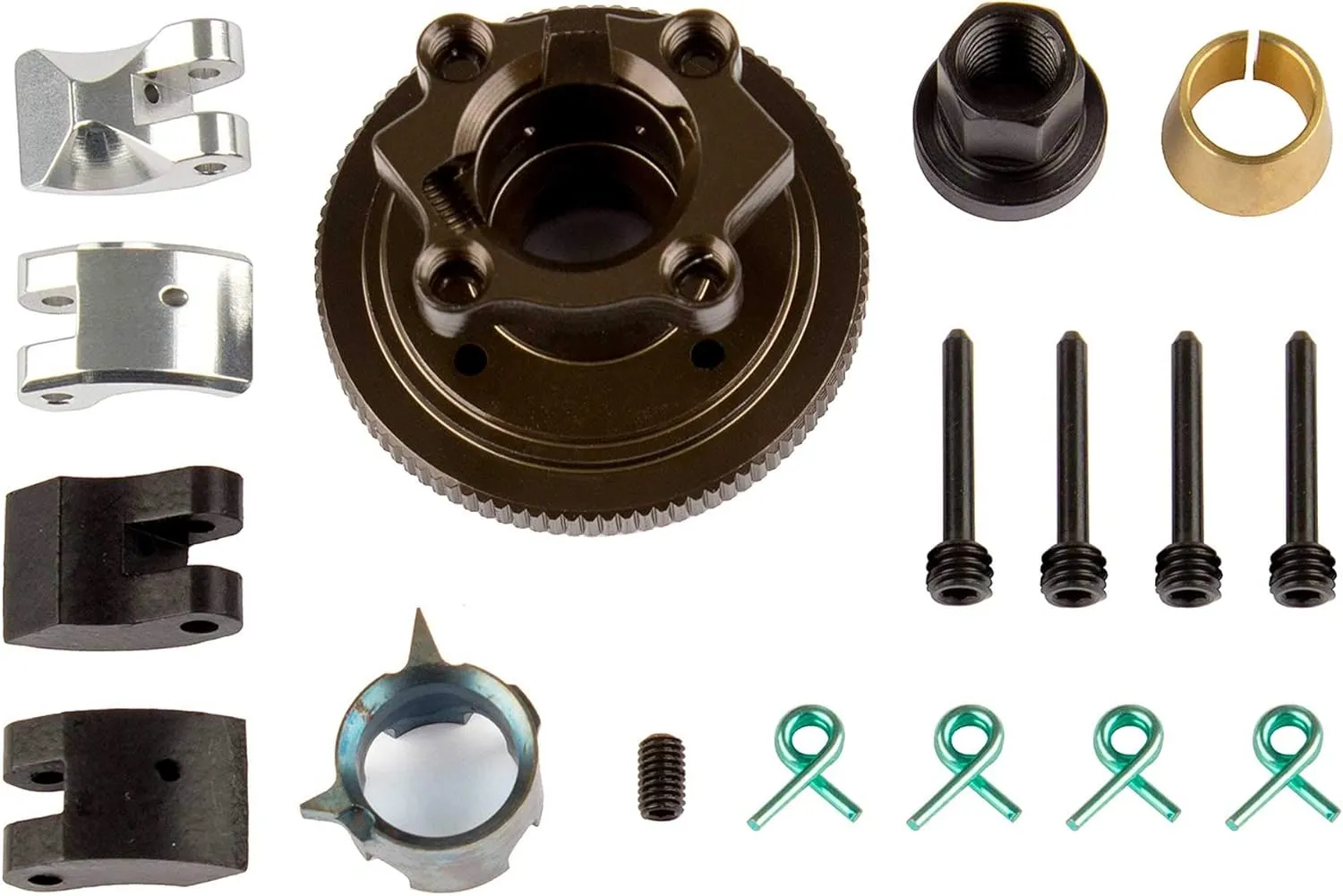

#81420 contents:
qty 1 Flywheel, 4 Shoe Adjustable
qty 1 Spring Cam, 4 Shoe Adjustable
qty 4 Clutch Shoe Springs, 0.95mm
qty 2 Composite Clutch Shoes
qty 2 Aluminum Clutch Shoes, hard
qty 1 Clutch Nut, 4 Shoe Clutch
qty 1 Brass Collet, 4 Shoe Clutch
qty 4 Clutch Shoe Pins, 4 Shoe Clutch
qty 1 Set Screws, M3x0.5x5mm
